What Happens During an Automatic Gearbox Rebuild?

When an automatic gearbox develops problems, many drivers immediately assume the entire transmission needs replacing. In reality, a professional gearbox rebuild is often the smarter and more cost-effective solution.

At Planet Gears UK, we rebuild automatic gearboxes for a wide range of vehicles, including DSG, DCT, CVT and ZF transmissions. But many customers ask the same question before booking in:

“What actually happens during a gearbox rebuild?”

Below, we explain the gearbox rebuild process, what’s involved, and why rebuilding an automatic gearbox can often save thousands compared to replacement.

What Is an Automatic Gearbox Rebuild?

An automatic gearbox rebuild involves removing the transmission, stripping it down completely, inspecting internal components, replacing worn or damaged parts, and rebuilding the gearbox to restore proper performance and reliability.

Unlike a simple repair, a rebuild allows specialists to inspect the gearbox internally and correct the root cause of failure.

Signs Your Gearbox May Need Rebuilding

Some of the most common symptoms include:

• Slipping gears

• Delayed engagement into Drive or Reverse

• Juddering when accelerating

• Harsh or erratic gear changes

• Warning lights or limp mode

• Grinding or unusual noises

• Loss of drive

These symptoms are common in:

• Ford Powershift gearboxes

• DSG transmissions

• Hyundai & Kia DCT systems

• BMW ZF automatics

• Nissan CVT gearboxes

• Step 1 – Gearbox Diagnostics

  Before removing the gearbox, specialist diagnostics are carried out to identify the likely cause of failure.

  This may include:

  • Fault code scanning

  • Road testing

  • Fluid inspection

  • Electronic testing

  • Hydraulic pressure checks

  Accurate diagnosis is important because many gearbox faults can mimic engine or electrical issues.

• Step 2 – Gearbox Removal

  Once the issue is confirmed, the gearbox is carefully removed from the vehicle.

  Modern automatic transmissions are complex systems connected to:

  • Electronics

  • Cooling systems

  • Driveshafts

  • Torque converters

  • Mechatronic units

  This stage requires specialist tools and experience to avoid damage during removal.

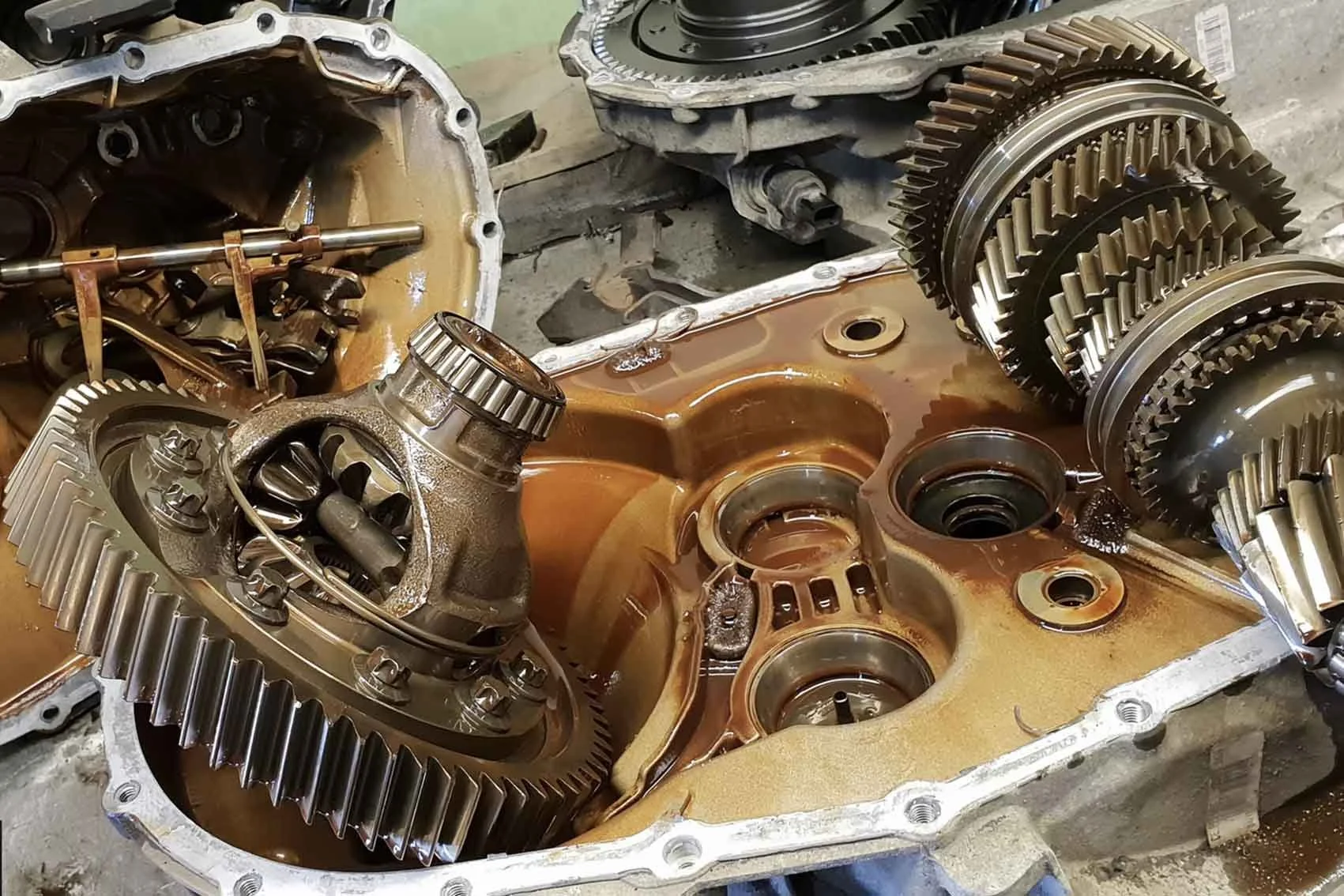

• Step 3 – Full Gearbox Strip Down

  The gearbox is then completely dismantled and inspected internally.

  Technicians check for:

  • Worn clutch packs

  • Damaged bearings

  • Burnt friction materials

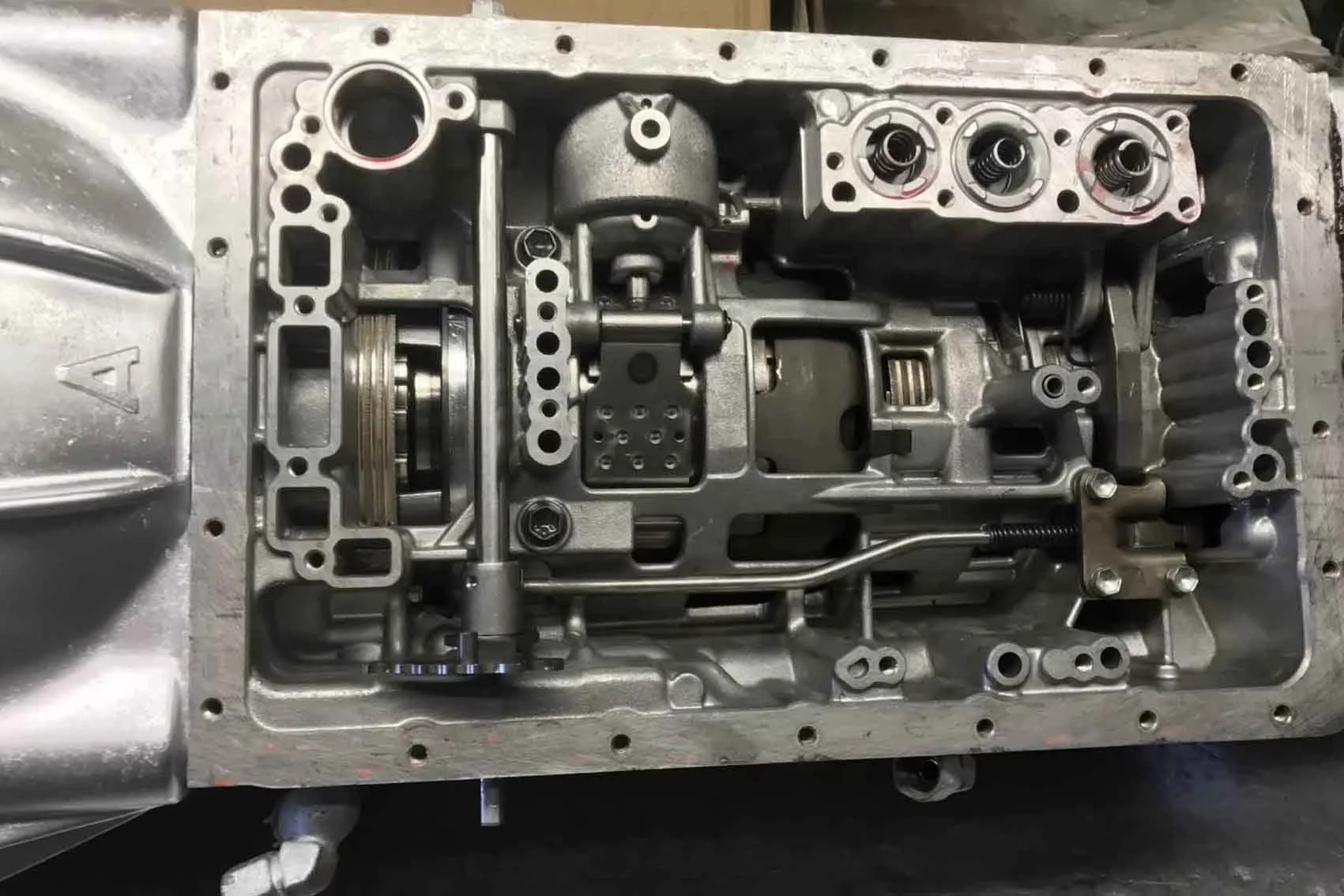

  • Valve body wear

  • Mechatronic faults

  • Internal contamination

  • Gear wear and damage

  This process identifies exactly what caused the gearbox failure.

• Step 4 – Replacing Worn Components

  Any faulty or worn components are replaced using high-quality replacement parts.

  Depending on the gearbox type, this may include:

  • Clutch packs

  • Seals and gaskets

  • Solenoids

  • Bearings

  • Mechatronic components

  • Valve body repairs

  • Torque converter refurbishment

  This is the stage where the gearbox is effectively restored.

• Step 5 – Reassembly & Testing

  Once rebuilt, the gearbox is carefully reassembled and tested.

  This includes:

  • Setting internal tolerances

  • Fluid pressure testing

  • Electronic calibration

  • Software adaptation (where required)

  The rebuilt gearbox is then refitted to the vehicle and road tested to ensure smooth operation.

Why Rebuilding Is Often Better Than Replacement

Many drivers are surprised to learn that rebuilding is often:

• More cost-effective

• More reliable than fitting a used gearbox

• Faster than sourcing replacement units

• Covered by warranty

A rebuild focuses on repairing the actual fault rather than replacing the entire transmission unnecessarily.

Gearboxes We Commonly Rebuild

At Re Engineered Transmissions, we regularly rebuild:

• Ford Powershift DCT250 & DCT450 gearboxes

• VW & Audi DSG gearboxes

• Hyundai & Kia DCT transmissions

• BMW ZF 8-speed automatics

• Nissan CVT gearboxes

Why Choose Planet Gears UK?

• Specialists in automatic gearbox rebuilds

• Experienced with DSG, DCT, CVT and ZF systems

• Accurate diagnostics and honest advice

• Competitive pricing

• Warranty-backed rebuilds

We focus on repairing transmissions properly and helping customers avoid unnecessary replacement costs.

If your vehicle is showing any of the symptoms above, early inspection is essential. Contact Planet Gears UK for expert gearbox diagnostics, honest advice and professional repair or reconditioning.
